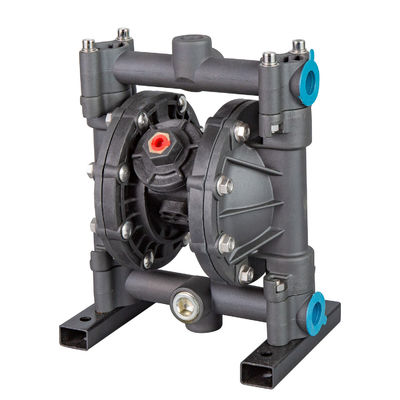

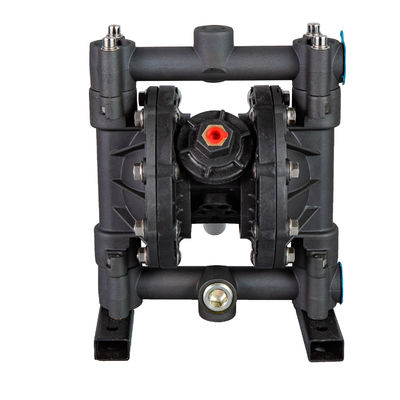

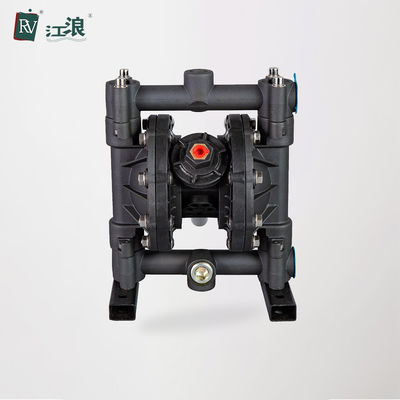

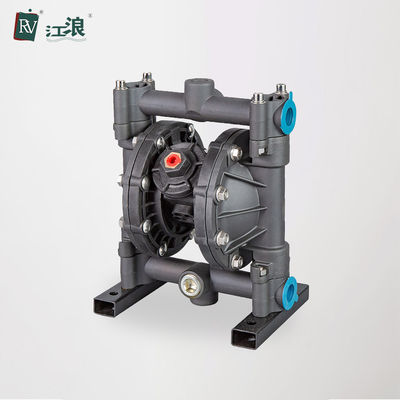

Thông tin chi tiết sản phẩm:
|
| Áp lực tối đa: | 0,1 -10 bar | Tốc độ dòng chảy tối đa: | 15gpm (57L/m) |
|---|---|---|---|
| Đầu hút: | 7 mét | Tốc độ chuyển đổi tối đa: | 400cpm |
| Chiều cao hút tối đa: | 4,5 m | Lượng ngũ cốc tối đa được phép: | 2,5mm |
| Tiêu thụ không khí tối đa: | 20 SCFM (10L/s) | kích thước đầu vào không khí: | 1/4 trong |
| Kích thước cửa thoát khí: | 3/8 trong | Kích thước ổ cắm chất lỏng: | 1/2 3/4 in |
| kích thước ổ cắm chất lỏng: | 1/2 3/4in | Cân nặng: | 4,5kg |
| Vật liệu màng: | Polytetrafluoroetylen (PTFE) | Nhiệt độ áp dụng: | 5-80 ° C. |
| Nguồn điện: | Khí nén | ||
| Làm nổi bật: | 100–500 L/min Flow Rate Pneumatic Diaphragm Pump,7 m Suction Head Air Operated Diaphragm Pump,57L/M Flow Rate Double Diaphragm Pump |
||
| Max Working Pressure | 100 psi (0.7Mpa, 7bar) |
| Max Flow Rate | 15gpm (57L/M) |
| Max Reciprocating Speed | 400cpm |
| Max Suction Height (Dry Sucking) | 4.5 m |
| Max Permitted Grain | 2.5mm |
| Max Air Consumption | 20 scfm (10L/S) |
| Air Inlet Size | 1/4 in |
| Air Outlet Size | 3/8 in |
| Fluid Inlet Size | 1/2 - 3/4 in |
| Fluid Outlet Size | 1/2 - 3/4 in |
| Weight | Aluminum pump: 4.5KGS Stainless steel pump: 6.8KGS |
Shanghai Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China. Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities. Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and related products.
The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and other certifications.
Shanghai Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Shanghai Jianglang has established long term business relationship with famous enterprises such as BASF, Bayer, SAMSUNG etc. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
We offer various material options, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
