Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Ứng dụng: | Khác | Áp lực: | Áp suất thấp |
|---|---|---|---|
| Bảo hành: | 1 năm | brand name: | RV |
| Nơi xuất xứ: | Thượng Hải, Trung Quốc | Hỗ trợ tùy chỉnh: | OEM, ODM |
| Nguồn điện: | Khí nén | Kết cấu: | Bơm màng |
| Điện áp: | Khí nén | Vật liệu: | PP |
| Tên: | Bơm AODD | Màu sắc: | Trắng |
| Cơ hoành: | PTFE | tốc độ: | 276cpm |
| thương hiệu: | RV | đóng gói: | thùng carton |
| Áp suất tối đa: | 120psi (0,84MPa, 8.4bar) | thân bơm: | PP |
| Dòng chảy tối đa: | 40gpm(1500lpm) | ||
| Làm nổi bật: | 276cpm PTFE Diaphragm Pump,1 Year Warranty Diaphragm Pump,PP Pump Body AODD Pump |
||

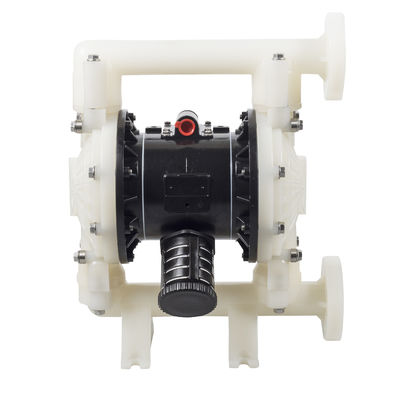

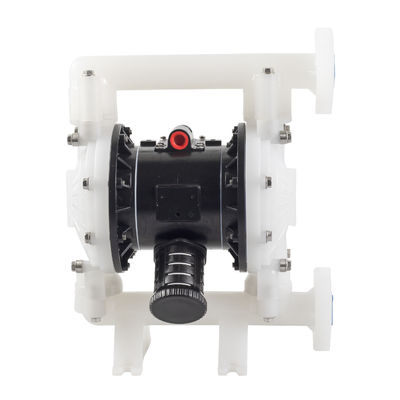

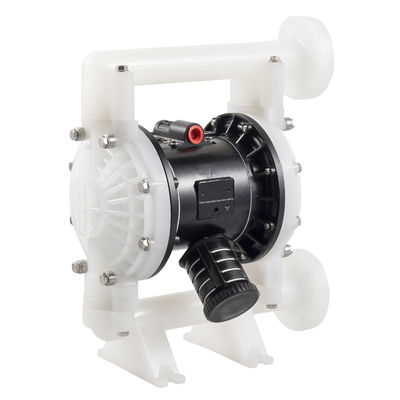

High-performance pneumatic diaphragm pump designed for car wash systems, road cleaning, and wastewater liquid transfer applications.
| Parameter | Value |
|---|---|
| Max Working Pressure | 120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate | 40gpm (150lpm) |
| Max Reciprocating Speed | 276cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.16in. (4mm) |
| Max Air Consumption | 45 scfm (22.5L/S) |
| Air Inlet Size | 1/2 in |
| Air Outlet Size | 3/4 in |
| Fluid Inlet Size | 1in |
| Fluid Outlet Size | 1in |
| Weight (PP pump) | 8.2KGS |
Headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. Recognized as a High-Tech Enterprise and Credit Company with strong design and innovation capabilities.
Specializing in diaphragm pumps and control valves including: Pneumatic Diaphragm Pumps, Electric Diaphragm Pumps, Piston Pumps, Powder Pumps, Sanitary Pumps, and various control valves.
Holder of 40+ patents (including 10 invention patents), TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS certifications. Contributor to national standards for pneumatic diaphragm pumps in petrochemical industry (SH/T 3191-2017).
1 pc for regular product. Samples available with cost deductible from future orders.
D/P, T/T, Western Union - confirmed per order.
1-7 working days typically, depending on quantity.
Cartons with foam inside, wooden case, and pallet options.
International express or sea freight.
15 years for air motor, 5 years for pump body.
Yes, we can manufacture according to custom requirements.
